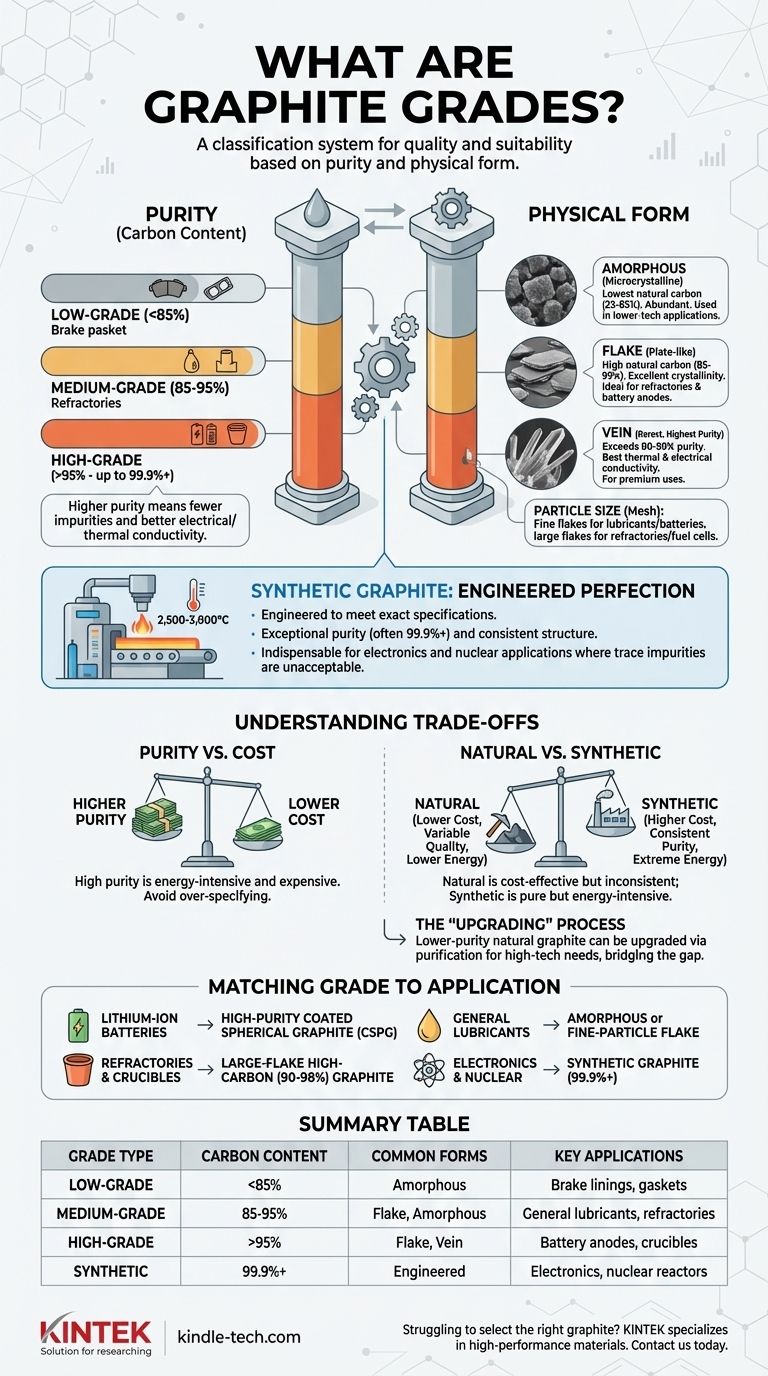

Graphite grades refer to the classification of graphite materials based on their properties, purity, and intended applications. These grades are determined by factors such as grain size, density, strength, and thermal conductivity, which influence their performance in various industrial and scientific uses. Graphite is a versatile material used in applications ranging from electrodes in metallurgy to components in aerospace and electronics. Understanding graphite grades is essential for selecting the right material for specific needs, as each grade offers unique characteristics tailored to different operational conditions.
Key Points Explained:
-
Definition of Graphite Grades:
- Graphite grades are classifications that describe the quality, properties, and suitability of graphite for specific applications. These grades are determined by factors like purity, grain size, density, and mechanical strength.
- For example, high-purity graphite grades are used in semiconductor manufacturing, while coarse-grained grades are preferred for electrodes in steelmaking.
-
Factors Influencing Graphite Grades:
- Purity: High-purity graphite, with minimal impurities, is essential for applications like nuclear reactors and electronics.
- Grain Size: Fine-grained graphite offers better surface finish and precision, making it suitable for molds and dies, while coarse-grained graphite provides higher thermal shock resistance.
- Density: Higher density graphite is stronger and more durable, ideal for high-stress applications.
- Thermal Conductivity: Grades with high thermal conductivity are used in heat exchangers and thermal management systems.
-
Common Graphite Grades and Their Applications:
- Isostatic Graphite: Known for its uniform structure and high strength, it is used in EDM (Electrical Discharge Machining) electrodes and semiconductor components.
- Extruded Graphite: Often used in metallurgical applications due to its cost-effectiveness and good thermal properties.
- Vibrated Graphite: Used in large-scale applications like crucibles and furnace linings because of its large grain size and thermal shock resistance.
-
Selection Criteria for Graphite Grades:
- Application Requirements: The choice of graphite grade depends on the specific needs of the application, such as thermal stability, electrical conductivity, or mechanical strength.
- Operating Conditions: Factors like temperature, pressure, and exposure to corrosive environments influence the selection of the appropriate grade.
- Cost Considerations: Higher-grade graphite with superior properties is often more expensive, so balancing performance and cost is crucial.
-
Testing and Certification:
- Graphite grades are often tested and certified to ensure they meet industry standards. Tests may include measurements of density, porosity, thermal conductivity, and mechanical strength.
- Certification ensures that the graphite material performs as expected in its intended application, providing reliability and consistency.
Understanding graphite grades is critical for making informed decisions in industries that rely on this versatile material. By evaluating the specific requirements of an application and matching them with the appropriate graphite grade, users can optimize performance, durability, and cost-effectiveness.
Summary Table:
| Graphite Grade | Key Properties | Applications |
|---|---|---|
| Isostatic Graphite | Uniform structure, high strength | EDM electrodes, semiconductor components |
| Extruded Graphite | Cost-effective, good thermal properties | Metallurgical applications |
| Vibrated Graphite | Large grain size, thermal shock resistance | Crucibles, furnace linings |
